Key Specifications / Features
Model No.: HM-231028-ADM-01 Hits: 0

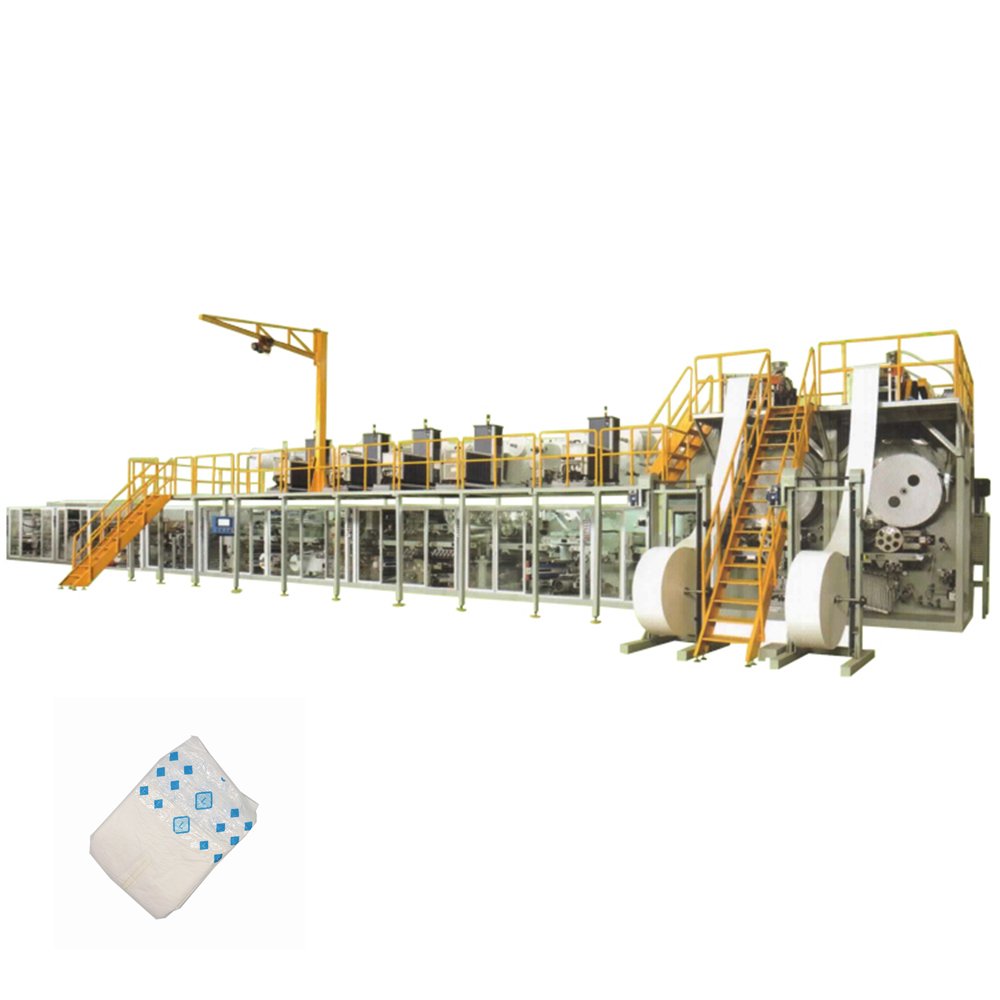

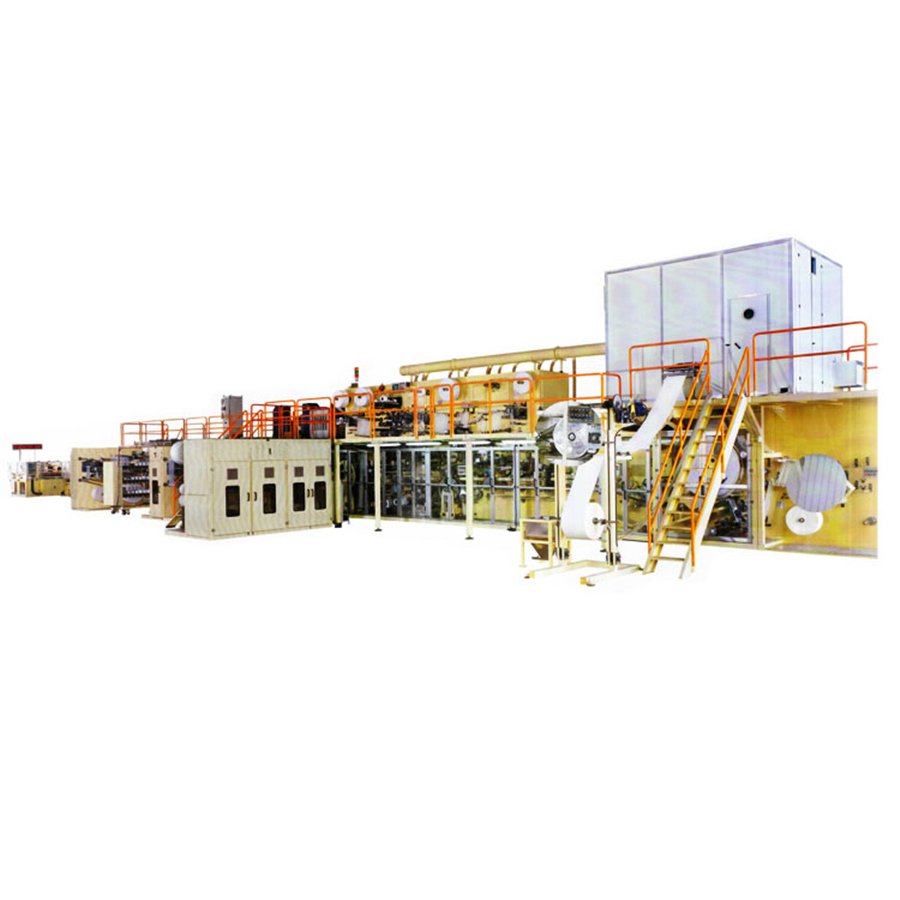

Our adult diaper production line is designed for long-lasting performance with corrosion-resistant components. This automatic system is equipped with a user-friendly PLC control system that operates seamlessly on the touch screen interface. With a design speed of 300 pieces per minute, it ensures efficient and reliable production.
Request a quoteTags
Detail Information
| Overall Size | 33M*8M*4.5M |
| Machine Size | 31M*2.2M*4.5M |
| Design Speed | 300pcs/min |
| Stable Work Speed | 180(Auto)-250(Full sero)pcs/min |
| Product Yield | ≥97% |
| Powere Source | 380V, 50HZ |
| Machine Capacity | About 400KW |
| Air Pressure | 0.6-0.8Mpa |
| Machine Weight | About 105T |
Configuration
1. Product structure: Leg cuff N.W., Topsheet N.W., Fluff core (with SAP), Side tape, Elastic Waistband, Frontal tape, Backsheet.
2. Product size: M: 680*450mm, L: 800*650mm, XL: 950*760mm
3. Contral system: PLC control system, operating on the touch screen, man-machine interface.
4. Tension system: Leg cuff N.W., Topsheet N.W., elastic waistband, upper & down tissue, backsheet are A&B shaft active unwinding by inverter motor.
5. Drive system: Servo Drive (Easy to change size), timing belt and flat belt are imported products, and all the key parts are using imported bearings.
6. Safety system: It has safety device on the operating side, matched with urgent stop switch. High audio fan uses sound insulation or silencer.
7. Packing way: Equipped with the stacker at the request of client.
8. Materials corrective system: Germany BST automatic web guide system (optional)
