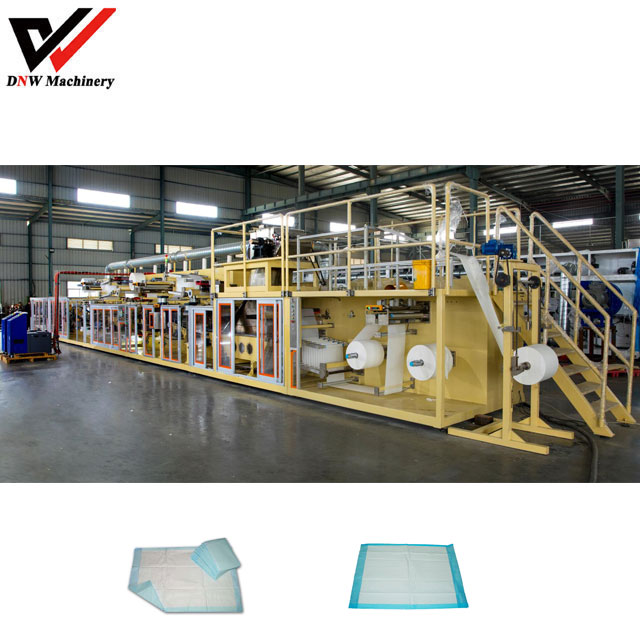

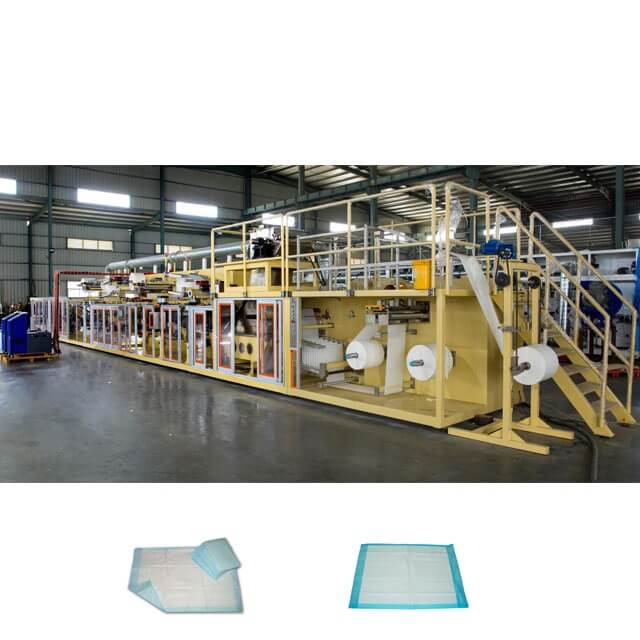

BST Auto Web Guide Disposable Medical Underpad Machine
Key Specifications / Features
Model No.: HM-231024-UPM-05 Hits: 0
As a trusted Disposable Medical Underpad Machine Provider, we offer options with the Germany BST Automatic Web Guide System, along with tension unwinding capability. Achieving an optimal speed of 300 pieces per minute, our machines ensure quality and precision for your medical underpad production needs.
Request a quoteTags
Detail Information

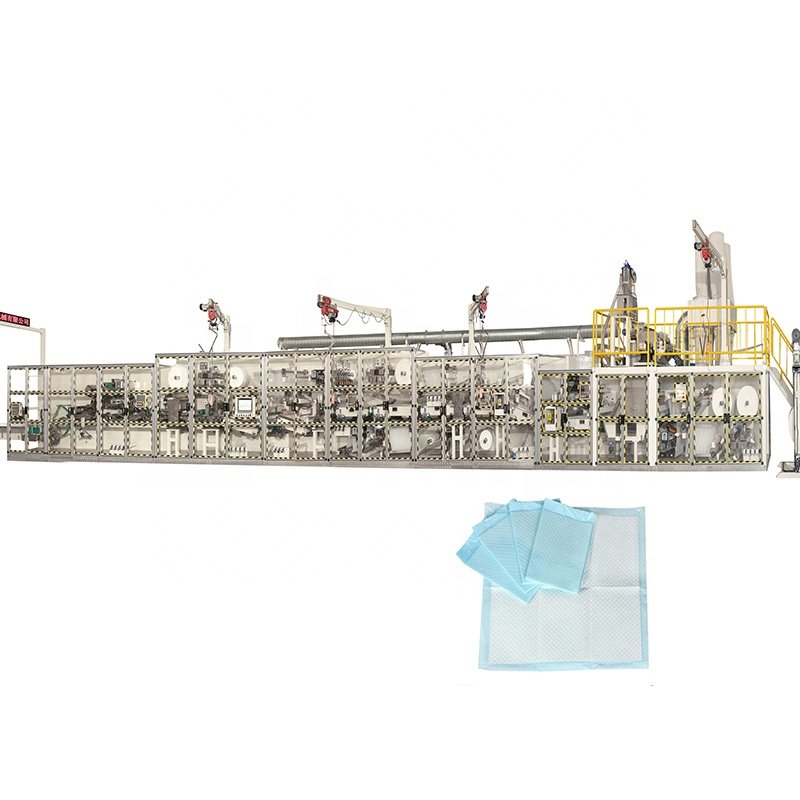

BST Auto Web Guide Disposable Medical Underpad Machine
| Overall Size | 30M*6M*4M |
| Machine Size | 24M*2.2M*3M |
| Design Speed | 300M/min |
| Stable Work Speed | 250M/min |
| Product Yield | ≥97% |
| Powe re Source | 380V, 50HZ |
| Machine Capacity | 280KW |
| Air Pressure | 0.6-0.8Mpa |
| Machine Weight | 60T |
| Main Parameter | |
| PRODUCT STRUCTURE | Top tissue paper cotton core (SAP), bottom layer tissue paper, Top sheet, PE film. |
| PRODUCT SIZE | width:600mm/ length:900mm |
| CONTROL SYSTEM | PLC control system, Ope rating on the touch screen, Configure HDTV monitor. |
| TENSION SYSTEM | Tension unwinding equipped, constant tension control with buffer system. automatic web guide system. The unwinding system ensure materials stable working at full speed splice, minimize the impact on materials tension force, to reduce the time of stop machine. |
| DRIVE SYSTEM | Full automatic, full servo drive, imported timing belt, key position adopt the imported bearing. |
| SAFETY SYSTEM | It has safety device on the operating side, matched with urgent stop switch,high audio fan uses sound insulation or silencer. |
| MATERIALS CORRECTIVE SYSTEM | Germany BST automatic web guide system(optional). |
