Cotton Printed Baby Diaper Machine, Touch Screen Control

Cotton Printed Baby Diaper Machine, Touch Screen Control

Key Specifications / Features

Model No.: HM-231011-BDM-11 Hits: 1

We are your trusted Cotton Printed Baby Diaper Machine Manufacturer. Our machines offer user-friendly touch screen control, full servo frequency conversion, and a PLC control system. With a design speed of 600 pieces per minute, they provide efficient and reliable production.

Request a quote

Detail Information

Product Details

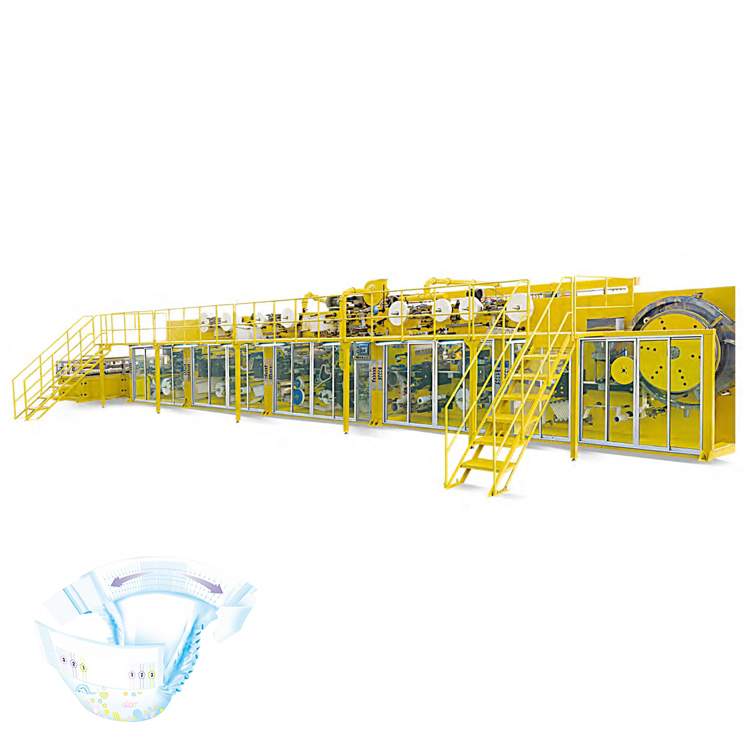

Cotton printed baby diaper production line

Subject Parameter
Overall size(L*W*H)  24M*4M*3.6M(For reference only)
Machine size(L*W*H)  22m*2.1m*3.3m
Design speed 600pcs/min
Stable speed 500-550pcs/min
Pass percentage  98%
Power source  380V,50HZ(3phase,4lines+ground wire)
Air pressure 0.6-0.8Mpa
Cotton Printed Baby Diaper Machine
Feature
  1. User-friendly touch screen interface for intuitive control and graphical interaction.
  2. Comprehensive servo technology with selectable speed adjustments and advanced PLC programming.
  3. Precision toothed crushing mechanism.
  4. Efficient demolding and formation of cotton core mesh wheels.
  5. Accurate polymer dosing application.
  6. Active material unwinding with consistent tension control and automated material switching.
  7. Material breakage and shortage detection with automatic scrap rejection at the intake.
  8. On-the-fly phase adjustment without the need for shutdown.
  9. Column-structured swivel tool rest for enhanced stability.
  10. Enjoy a 30% discount on finished products.
  11. Automatic product counting and bagging for streamlined packaging.

Raw materials needed for producing diapers:

1. Baby diapers A-Grade: pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + cloth-like laminated film+ SAP + hot melt
adhesive + elastic adhesive + hook side tape + Loop frontal tape ADL + Elastic Ribbon + Elastic Waistband
2. Adult diaper A-Grade:pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + cloth-like laminated film+ SAP + hot melt
adhesive + elastic adhesive + hook side tape + Loop frontal tape ADL + Elastic Ribbon + Elastic Waistband
