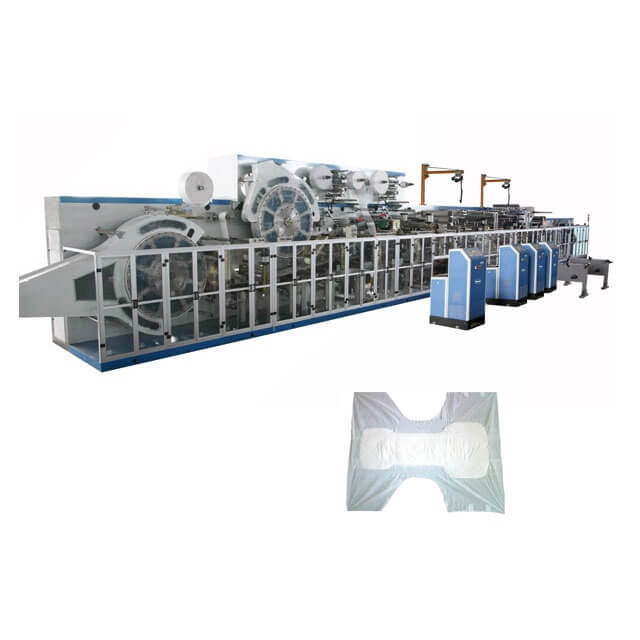

Economic Type Classic I Shape Adult Diaper Machine
Key Specifications / Features
Model No.: ADM-CK100 Hits: 18
The machine can produce adult tape type disposable diapers designed to make it easier for caregivers to put on the user. The amount of absorption is designed according to the situation and aim for comfort while preventing leakage from the legs and lower back.
Request a quoteDetail Information
Functions and features
1) The machine can produce 3 sizes of economic type adult diapers.
2) Crusher system adopts a hard alloy saw blade head, can crush all kinds of fluff pulp, crushing capacity can up to 600-1000KGS/Hour.
3) Double fluff core drum forming system, with long fiber and better absorbent capacity.
4) SAP feeding adopts a frequency converter controlling system. Parameter of grams can be set on the touchable screen.
5) The machine produces economic type adult diapers, which include the following devices:
a) Fluff pulp wrapping and continuous pressing unit.
b) Top sheet non-woven feeding system
c) Leg cuff system
d) Bottom film feeding system
e) Frontal tape feeding and side tape feeding system
f) Side tape inner-folding system
g) Arc shape cutting system
h) Product vertical folding and product final cutting system
i) Product arranging-out.
Main technical parameters
1) Model: DNW-CK100
2) Designed speed: 140m/min
3) Practical speed: 80-100pcs/min
4) Installed capacity: 130KW (380V 50Hz)
5) Practical capacity: 80KW (380V 50Hz) Breaker Capacity: 400A
6) Electric wire:3x70mm2+1x25 mm2+1x16mm2
7) Machine size:(28x6x3)M (L×W×H)
8) Working size:(32x8x4M (L×W×H)
9) Machine weight:28.5T
10) Air compressor:1.5m3/min
11) Product size: S, M, L
12) Container:2x40HQ
1) The machine can produce 3 sizes of economic type adult diapers.
2) Crusher system adopts a hard alloy saw blade head, can crush all kinds of fluff pulp, crushing capacity can up to 600-1000KGS/Hour.
3) Double fluff core drum forming system, with long fiber and better absorbent capacity.
4) SAP feeding adopts a frequency converter controlling system. Parameter of grams can be set on the touchable screen.
5) The machine produces economic type adult diapers, which include the following devices:
a) Fluff pulp wrapping and continuous pressing unit.
b) Top sheet non-woven feeding system
c) Leg cuff system
d) Bottom film feeding system
e) Frontal tape feeding and side tape feeding system
f) Side tape inner-folding system
g) Arc shape cutting system
h) Product vertical folding and product final cutting system
i) Product arranging-out.
Main technical parameters
1) Model: DNW-CK100
2) Designed speed: 140m/min
3) Practical speed: 80-100pcs/min
4) Installed capacity: 130KW (380V 50Hz)
5) Practical capacity: 80KW (380V 50Hz) Breaker Capacity: 400A
6) Electric wire:3x70mm2+1x25 mm2+1x16mm2
7) Machine size:(28x6x3)M (L×W×H)
8) Working size:(32x8x4M (L×W×H)
9) Machine weight:28.5T
10) Air compressor:1.5m3/min
11) Product size: S, M, L
12) Container:2x40HQ
