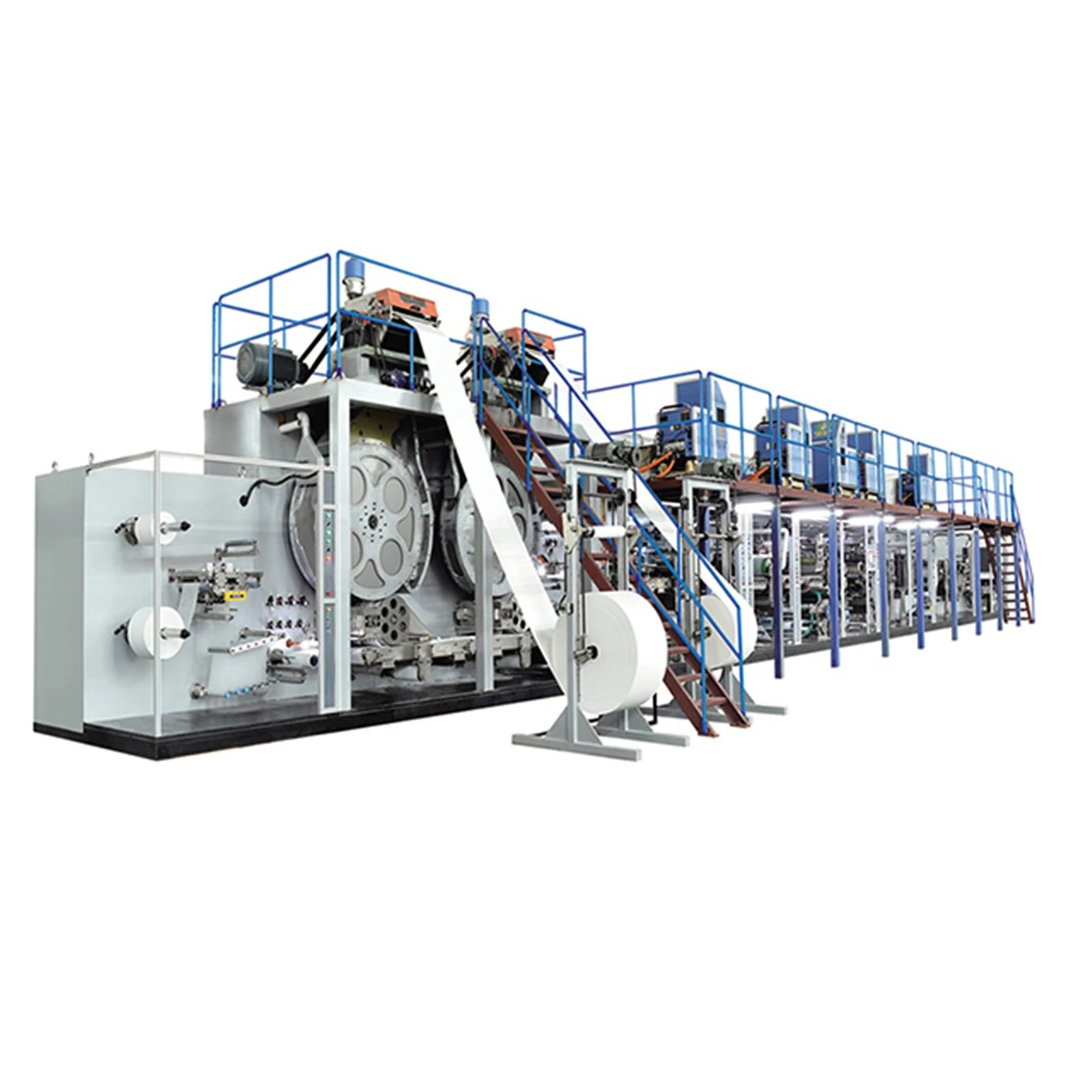

Excellent Design Touch Screen Operation Adult Diaper Machine

Excellent Design Touch Screen Operation Adult Diaper Machine

Key Specifications / Features

Model No.: HM-231017-ADM-04 Hits: 0

Discover our state-of-the-art Adult Diaper Machine, offering a remarkable work speed of 300 pieces per minute. Featuring a user-friendly PLC control system and an intuitive touch screen interface, this machine ensures efficient production with a seamless man-machine interaction.

Request a quote

Detail Information

Excellent Design Touch Screen Operation Adult Diaper Machine

Subject Parameter
Overall size(L*W*H) 24M*4M*3.6M(For reference only)
Machine size(L*W*H) 22m*2.1m*3.3m,based on the product provided by  client
Design speed 300pcs/min
Stable speed 160pcs/min
Pass percentage 98%
Work efficiency 85%-90%
Power source 380V,50HZ,(3phase,4lines+ground wire)
Machine capacity about 400KW
Air pressure 0.6-0.8Mpa
Machine weight  About 95T
Machine color Customized

Configuration:

Product structure:
Leg cuff N.W,Top sheet N.W,Fluff core(with SAP) Side Tape,ELastic waistband,Frontal tape,Back sheet.

Product size:
M: 680*450  L: 800*650    XL: 950*760

Control system:
PLC control system,operating on the touch screen,man-machine interface

Tension system:
Leg cuff N.W,Top sheet N.W,elastic waistband,upper & down tissue,back sheet are A & B shaft active unwinding by Inverter motor.

Drive system:
Timing belt and flat belt are imported products,and all the key parts are imported bearings.

Safety system:
It has safety device on the operating side,matched with urgent stop switch,high audio fan uses sound insulation or silencer.

Packing way:
Equipped with the stacker at the request of client.

Materials corrective system:
Germany BST automatic web guide system(optional)


Main Product:

1. Baby diaper Production Line( Include:I & T shape diaper,Baby pants,Full Elastic waistband diaper)
2. Adult diaper Production Line(Include:Adult diaper,Adult pants)
3. Sanitary Napkin & Panty Liner Production Line
4. Menstruation Panty Production Line
5. Under Pad Production Line
6. Disposable Breast Pad Production Line
