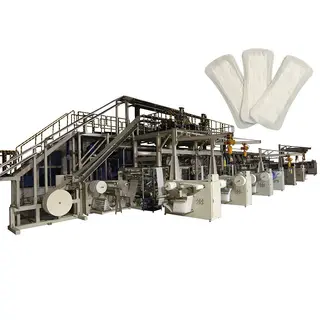

Full Servo Automatic Women Sanitary Pad Making Machine
Key Specifications / Features
Model No.: HM-231018-SNM-02 Hits: 0
Choose excellence with our Full Servo Automatic Women Sanitary Napkin Pad Machine. Capable of reaching a maximum work speed of 700 pieces per minute and maintaining a pass rate of over 98%, these machines are equipped with imported timing belts and flat belts for top-tier performance.
Request a quoteTags
Detail Information
Full Servo Automatic Women Sanitary Pad Making Machine
| Subject | Parameter |
| Stable Working Speed | 300-700pcs/min (By order) |
| Pass Percentage | ≥98% |
| Operating Rate | ≥85% |
| Power Supply | 380V 50Hz |
| Electrical Supply | 380V ±5%, 50Hz Three-phase four-wire + ground wire |
| Power Installed | About 180KW (Not included hot melt glue machine) |
| Supply Pressure | 0.6-0.8Mpa |
| Machine Sizes (L× W× H ) | 22.0m× 5.5m× 3.5m(L× W× H )(Only for reference) |
| Main Engine Sizes (L× W× H ) | 32m× 9.0 5.0m (L× W× H ) ( Only for reference) |
| Machine Color | Customerized |
Configuration:
| Configuration | |
| Product Structure | Carrier Tissue, Fluff Core (Mix with SAP), Topsheet(3-PCS structure), ADL, Backsheet, Back Release Paper, Wings Release Paper, Pouch Film |
| Product Size | Daytime use: 240mm Night use: 285mm (Customized Design) |
| Control System | PLC Programming control, HMI operation |
| Tension System | Carrier tissue, absorbent paper, topsheet N.W., leg cuffs N.W., ADL, PE film, Back release paper, Wings Release Paper, pouch film A&B shaft active unwinding by inverter motor |
| Drive System | Full servo drive. Using import conveyor and timing belt. Important Part using import bearing. |
| Safety System | Safety guard installed at the operating side, equipped with emergance stop switch, security identifier. Driven side is equipped with safety pull wire |
| Materials corrective system | Germany BST automatic web guide system (optional) |
