Key Specifications / Features
Model No.: BDM-LLK600-SV Hits: 27
Full servo disposable pull up training pant baby diaper machine can produce 2 piece structure of pull up baby diapers at stable speed of 450pcs per minute
Request a quoteDetail Information
| Subject | Parameter |
| Working size(L*W*H) | 39M*9M*5M(For reference only) |
| Machine size(L*W*H) | 35m*2.3m*3.5m,based on the product provided by client |
| Design speed | 600pcs/min |
| Stable speed | 450pcs/min |
| Pass precentage | 98% |
| Work efficiency | 90% |
| Power source | 380V,50HZ,(3phase,4lines+ground wire) |
| Machine capacity | about 300KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 50T |
| Machine color | Customized |
Configuration:
1. Product structure:
Up & Down Tissue Fluff core(mix with SAP),ADL,Backsheet,Frontal tape,Topsheet,Leg cuff N.W,S cut Tape,Elastic waistband lamination online.
2. Product size:
S: 390*320 M: 450*320 L: 500*330 XL: 525*330
3. Control system:
PLC control system,operating on the touch screen,man-machine interface
4.Tension system:
Tension unwinding equipped,constant tension control with buffer system,automatic web guide system,The unwiding system ensure materials stable working at full speed splice,minimize the impact on materials tension force,to reduce the machine stop frequency.
5.Drive system:
Full servo drive,digital size change,ensure run synchronized at full process.The frontal tape and back sheet using servo positioning cutting to ensure pattern consistent with the phase.
6.Safety system:
Safety guard installed at the operating side,with security identifier,emergency stop switch at per segment,Driven side is equipped with the radiator system and safety wire.
7.Packing way:
Auto stacker as customized design(one push two exit)
8.Materials corrective system:
Germany BST automatic web guide system(optional)
Main Product:
1. Baby diaper Production Line( Include:pull up baby diaper, I & T shape diaper,Baby pants,Full Elastic waistband diaper)
2. Adult diaper Production Line(Include:Adult diaper,Adult pants)
3. Sanitary Napkin & Panty Liner Production Line
4. Menstruation Panty Production Line
5. Under Pad Production Line
6. Disposable Breast Pad Production Line
Brief Introduction
TOPPER Machinery Co.,Ltd has consistebtly insist on the "quality is fundamental,develop with innovation" mangement concept,with a strong design and development team,equipped with advanced CNC Longmen center.Keep studying new products to meet the needs of different customers,and summarize the experience of cooperation with large comnpanies in local and abroad,continue to test and improve the existing machines,ensure the high quality and stability of the equipment,achieve better economic benefits,and win a good Reputation.
Our advantage:
1.Professional

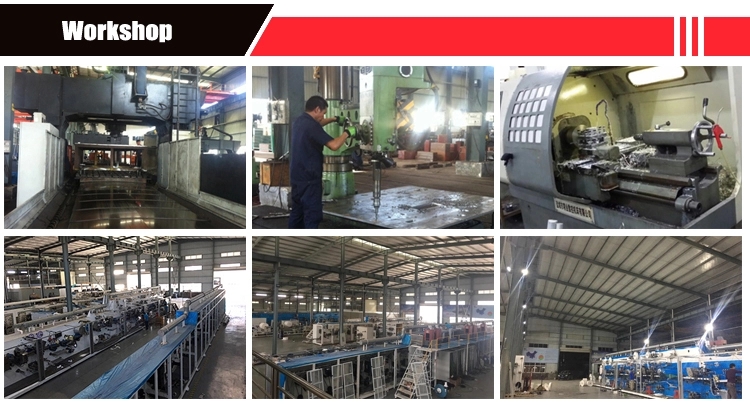

TOPPER have strong design and technology team and equipped with advanced CNC gantry machining center, CNC high-precision CNC lathe, large-scale radial drilling machine, precision saddle lathes, milling machines and other processing equipment.
2.Service:
"Quality as Fundamental, Development by Innovation" is our company culture.is professional engaged in researching,development,production,sales and service of hygiene product equipment.
3.Efficient:
Efficiency is the life of the company. DNW attaches great importance to enterprise efficiency. Introduces advanced company management system for all of our team. According to production schedule to ensure timely finish of machine of customers.
