Key Specifications / Features
Model No.: HM-231031-SNM-08 Hits: 4
Our Sanitary Napkin Manufacturing Machine is built for high efficiency and precision. With a full servo drive system and PLC control, it offers a design speed of 600 pieces per minute. What sets this machine apart is its use of A & B shaft active unwinding through an inverter motor, ensuring smooth and consistent operation.
Request a quoteTags
Detail Information

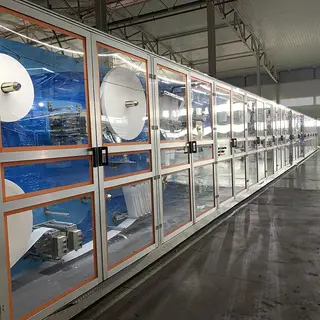

Full Servo Sanitary Napkin Manufacturing Machine for Sale
| Subject | Parameter |
| Overall size(L*W*H) | 30M*6M*3M(For reference only) |
| Machine size(L*W*H) | 22m*2m*2.5m,based on the product provided by client |
| Design speed | 600pcs/min |
| Stable speed | 500pcs/min |
| Pass precentage | 98% |
| Work efficiency | 90% |
| Power source | 380V,50HZ,(3phase,4lines+ground wire) |
| Machine capacity | about 180KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 50T |
| Machine color | Customized |
Configuration:
1. Product structure:
Topsheet, ADL(Blue core layer), Layer tissue,fluff pulp (mix with SAP) / SAP paper, back sheet, wings/back release paper.
2. Product size:
Daytime use: 240mm Night use: 285mm(Customized)
3. Control system:
PLC programming control, HMI operation.
4.Tension system:
Carrier tissue, absorbent paper, topshee NW, leg cuffs NW, ADL, PE film, back release paper, Wings release paper, pouch fillm, A&B shaft active unwinding by inverter motor.
5.Drive system:
Single-axle gear, imported timing belt, key position adopt the imported bearing.
6.Safety system:
Safty guard installed at the operating side, equipped with emergency stop switch, security identifier. Driven side is equipped with sadety pull wire.
7.Materials corrective system:
Germany BST automatic web guide system (optional)
Main Product:
1. Baby diaper Production Line( Include:I & T shape diaper,Baby pants,Full Elastic waistband diaper)
2. Adult diaper Production Line(Include:Adult diaper,Adult pants)
3. Sanitary Napkin & Panty Liner Production Line
4. Menstruation Panty Production Line
5. Under Pad Production Line
6. Disposable Breast Pad Production Line
