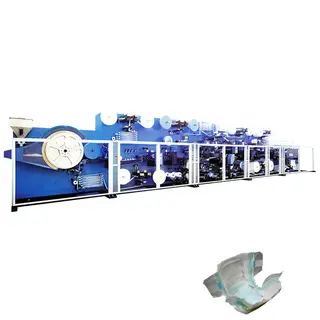

Full Servo Three-Piece Pull-Up Pants Making Machine
Key Specifications / Features
Model No.: HM-231011-BDM-07 Hits: 7
Experience top-tier efficiency with our Three-Piece Pull-Up Pants Making Machinery. These machines are fully servo-driven and offer the option for the Germany BST Automatic Web Guide System. With a design speed of 500 pieces per minute and customizable sizing, they meet diverse production needs.
Request a quoteTags
Detail Information
Configuration:
Product Components:
Fluff Core with Up & Down Tissue (incorporating SAP), ADL Layer, Backsheet, Frontal Tape, Topsheet, Leg Cuff Nonwoven, Side Tapes, Waistband.
Product Sizes:
Small (S): 390 x 280 mm
Medium (M): 450 x 320 mm
Large (L): 500 x 320 mm
Extra Large (XL): 525 x 330 mm
Control System:
PLC control with a touchscreen interface
LED digital display for pattern-based production control
Tension System:
A&B shaft active unwinding powered by inverter motors for Tissue, ADL, Backsheet, Topsheet, and Cuff Nonwoven.
Drive System:
Three-shaft mechanical drive
Semi-servo and full-servo options available
Safety Features:
Safety devices and an emergency stop switch on the operating side
High-performance fan with sound insulation or a silencer
Packing Options:
Stacker available upon client's request
Material Alignment System:
Optional German BST automatic web guide system for precise material alignment.
Product Components:
Fluff Core with Up & Down Tissue (incorporating SAP), ADL Layer, Backsheet, Frontal Tape, Topsheet, Leg Cuff Nonwoven, Side Tapes, Waistband.
Product Sizes:
Small (S): 390 x 280 mm
Medium (M): 450 x 320 mm
Large (L): 500 x 320 mm
Extra Large (XL): 525 x 330 mm
Control System:
PLC control with a touchscreen interface
LED digital display for pattern-based production control
Tension System:
A&B shaft active unwinding powered by inverter motors for Tissue, ADL, Backsheet, Topsheet, and Cuff Nonwoven.
Drive System:
Three-shaft mechanical drive
Semi-servo and full-servo options available
Safety Features:
Safety devices and an emergency stop switch on the operating side
High-performance fan with sound insulation or a silencer
Packing Options:
Stacker available upon client's request
Material Alignment System:
Optional German BST automatic web guide system for precise material alignment.
Main Product Lines:
- Baby Diaper Production Line (Includes I & T shape diaper, Baby pants, Full Elastic waistband diaper)
- Adult Diaper Production Line (Includes Adult diaper, Adult pants)
- Sanitary Napkin & Panty Liner Production Line
- Menstruation Panty Production Line
- Under Pad Production Line
- Disposable Breast Pad Production Line
