Detail Information
Full Elastic Big Waistband Semi-servo Baby Diaper Making Machine
1. Design speed:400 pcs/min
2. Reliable speed:350pcs/minute(According to Middle size )
3. Product structure: Leak cuff, ACQ, Up & bottom tissue, Fluff(SAP mixing), Side tape, Frontal tape, Waistband
4. Product size: XL, L, M, S;
5. Power source:380V 50HZ
6. Power consumption: About 180KW
7. Rejected products rate:≤2%(Excluding defects from glue and splice)
8. Machine heading: Facing machine, from left to right
9. Machine weight: About 45 tons
10. Machine color: According to customer’s request.
11. Machine overall size (L ×W ×H, exclude Stacker, about):21.5m ×6.5m ×3m
Main Parts Brand
|
Items |
Brand |
Origin & Material |
|
1.PLC |
Mitsubishi (Q series) |
Japan |
|
2.Touch-screen (10.5 inches) |
Mitsubishi(Q series) |
Japan |
|
3.Main driving frequency converter |
Mitsubishi |
Japan |
|
4. Servo motor |
Mitsubishi |
Japan |
|
5.Temperature controller |
YAMATAKE/Omron |
Japan |
|
6.Low-voltage electric appliance |
Schneider/Omron |
France/Japan |
|
7.Solid relay |
Omron |
Japan |
|
8.Pnuematic units |
Airtac or JYC |
Taiwan |
|
9.electric-heat units |
Xinyi |
Taiwan |
|
10.Key bearings |
NTN or NSK or NACHI or KOYO |
Japan |
|
11. Timing belts |
Jiebao/Hulong |
Zhejiang Ningbo |
|
12.Flat belts |
Habsit |
Switzerland |
|
13.Knife cylinders |
china |
D2 from U.S.A |
|
14.Rectifiers |
china |
Components from Germany |
|
15. Main drive motor |
Dongyuan |
Taiwan |

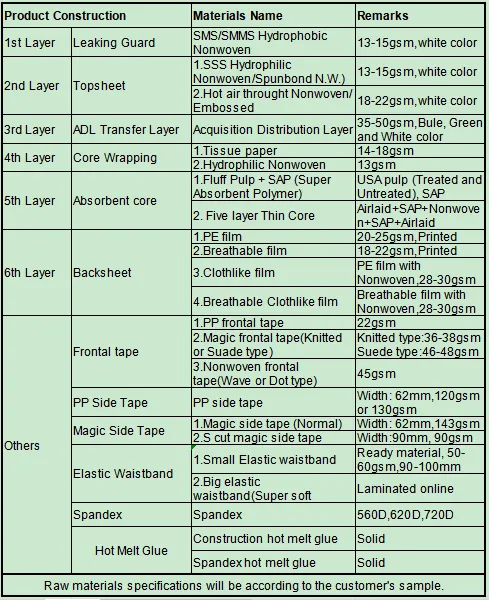

Diaper Raw Materials
After-Sale Service
1.Training:
The buyer can send his technicians to the seller plant for long term training during machine making. All the technicians’ expenses (including return air-tickets, boarding and lodging, and 150-200 dollars as per day salary, etc) are paid by the buyer during installing & debugging at the buyer plant, seller technicians are responsible for short time training for buyer operators.
2. Seven days in advance before every preparation works are ready, the buyer should notify the seller.
The seller should dispatch 2 – 3 technicians to the buyer plant to install machines.
3. Guarantee: 12 months after final acceptance at the buyer plant.
4. Easy worn parts (such as belts, bearings, etc) are not covered against the guarantee.
5. Damaged parts caused by unforeseen accidents or improper operation are not covered against
Guarantee
6: Life-long service
