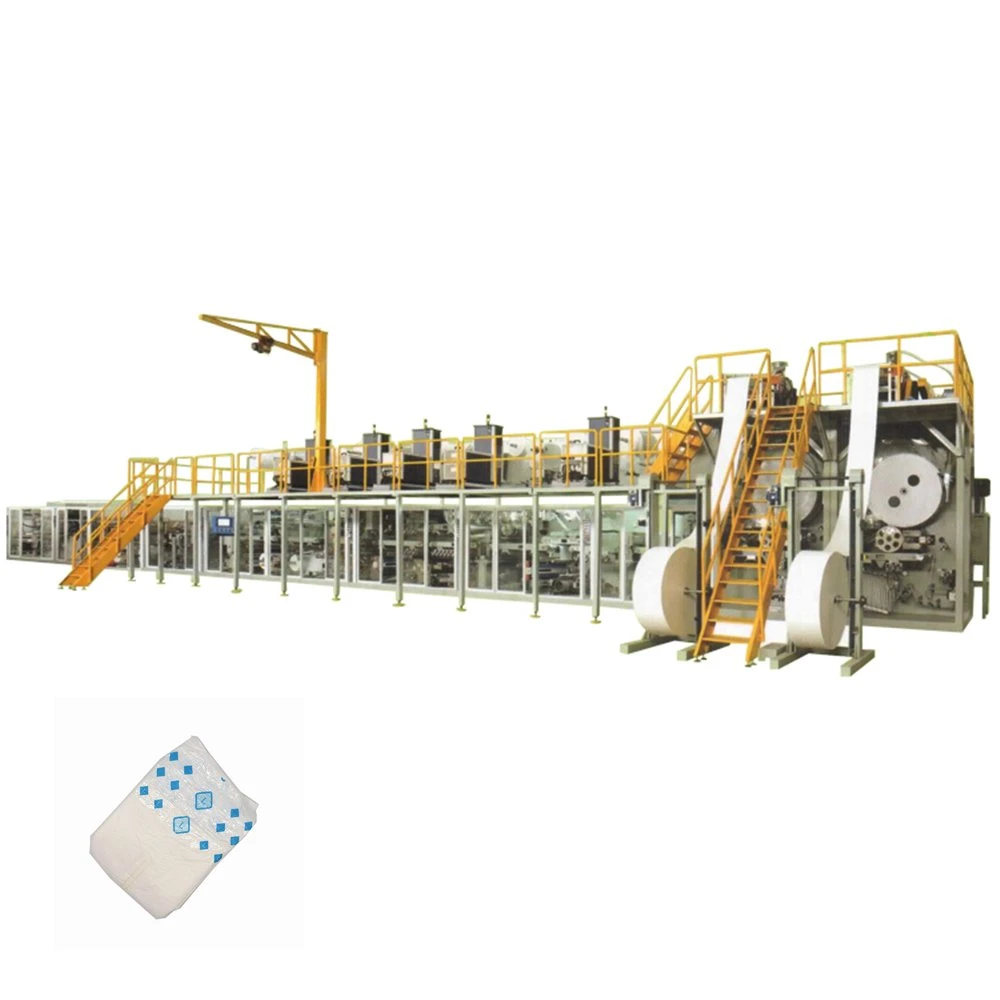

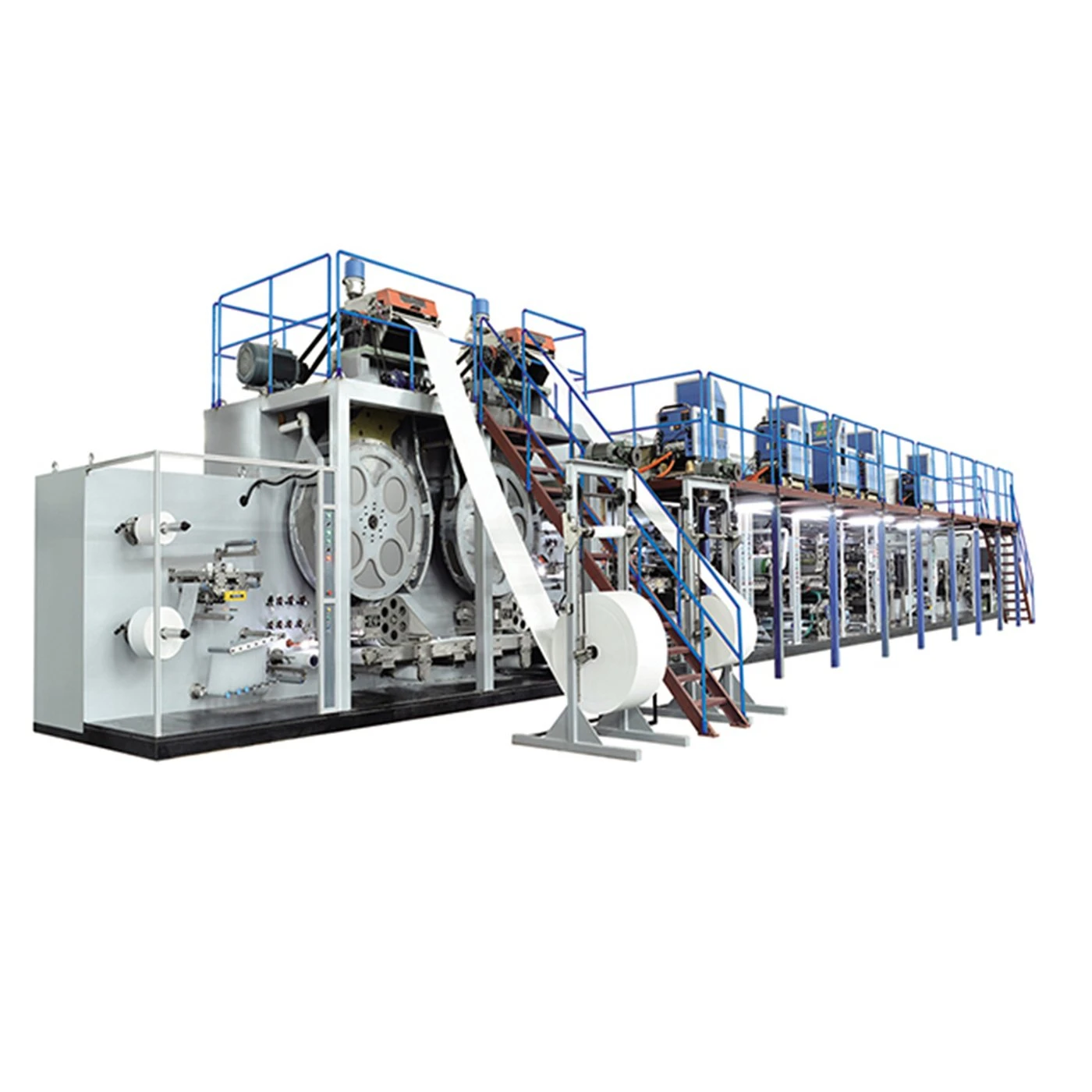

Modern Design Smart Care Adult Diaper Making Machines
Key Specifications / Features
Model No.: HM-231017-ADM-13 Hits: 0
Discover innovation with our Smart Care Adult Diaper Machines, boasting a modern design. These machines feature A & B shaft active unwinding driven by an inverter motor, ensuring a production speed of 300 pieces per minute. They also come equipped with essential safety devices for your peace of mind.
Request a quoteTags
Detail Information
Modern Design Smart Care Adult Diaper Making Machines
| Subject | Parameter |
| Overall size(L*W*H) | 24M*4M*3.6M(For reference only) |
| Machine size(L*W*H) | 22m*2.1m*3.3m,based on the product provided by client |
| Design speed | 300pcs/min |
| Stable speed | 160pcs/min |
| Pass percentage | 98% |
| Work efficiency | 85%-90% |
| Power source | 380V,50HZ,(3phase,4lines+ground wire) |
| Machine capacity | about 400KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 95T |
| Machine color | Customized |
Configuration:

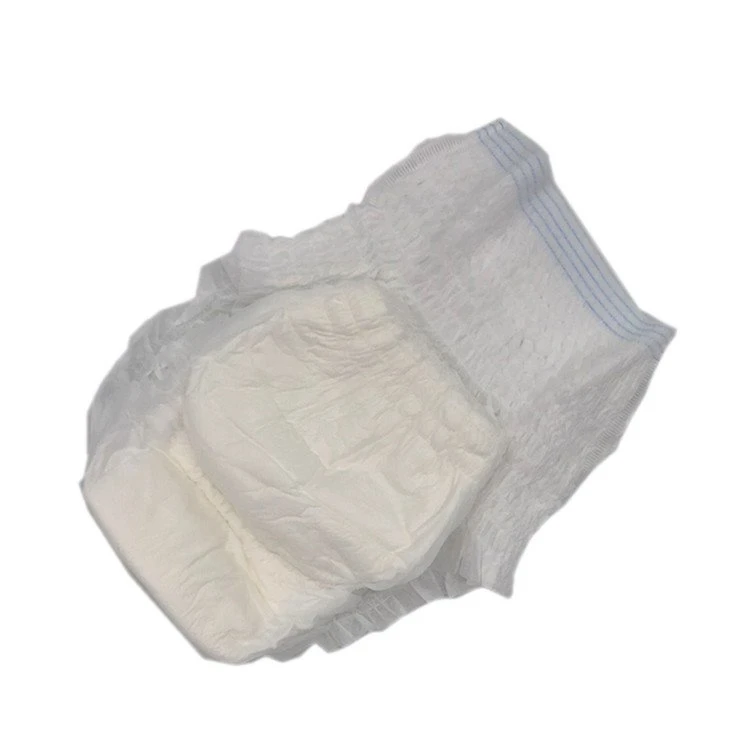

Product structure:
Leg cuff N.W,Top sheet N.W,Fluff core(with SAP) Side Tape,ELastic waistband,Frontal tape,Back sheet.
Product size:
M: 680*450 L: 800*650 XL: 950*760
Control system:
PLC control system,operating on the touch screen,man-machine interface
Tension system:
Leg cuff N.W,Top sheet N.W,elastic waistband,upper & down tissue,back sheet are A & B shaft active unwinding by Inverter motor.
Drive system:
Timing belt and flat belt are imported products,and all the key parts are imported bearings.
Safety system:
It has safety device on the operating side,matched with urgent stop switch,high audio fan uses sound insulation or silencer.
Packing way:
Equipped with the stacker at the request of client.
Materials corrective system:
Germany BST automatic web guide system(optional)
Main Product Lines:
- Baby Diaper Production Line (Includes I & T shape diaper, Baby pants, Full Elastic waistband diaper)
- Adult Diaper Production Line (Includes Adult diaper, Adult pants)
- Sanitary Napkin & Panty Liner Production Line
- Menstruation Panty Production Line
- Under Pad Production Line
- Disposable Breast Pad Production Line
