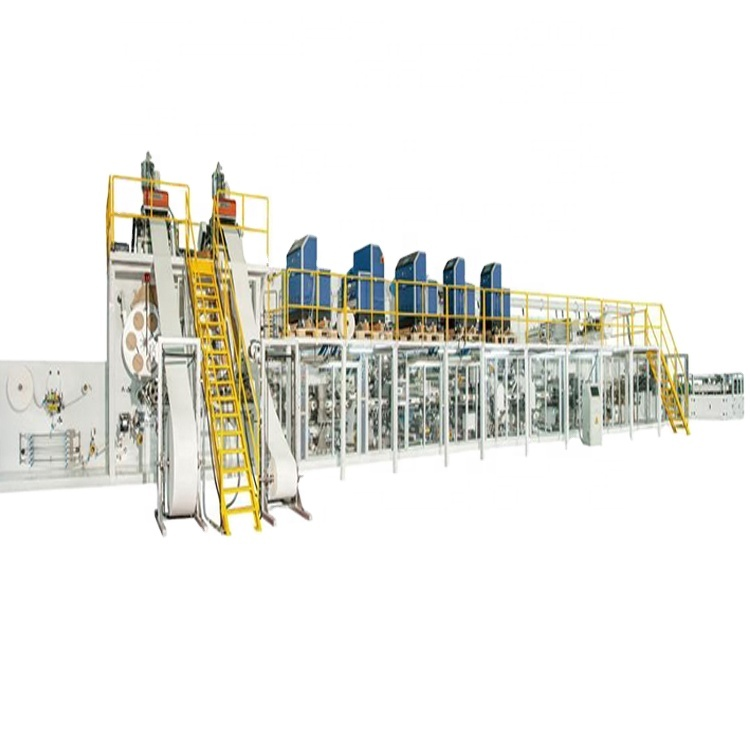

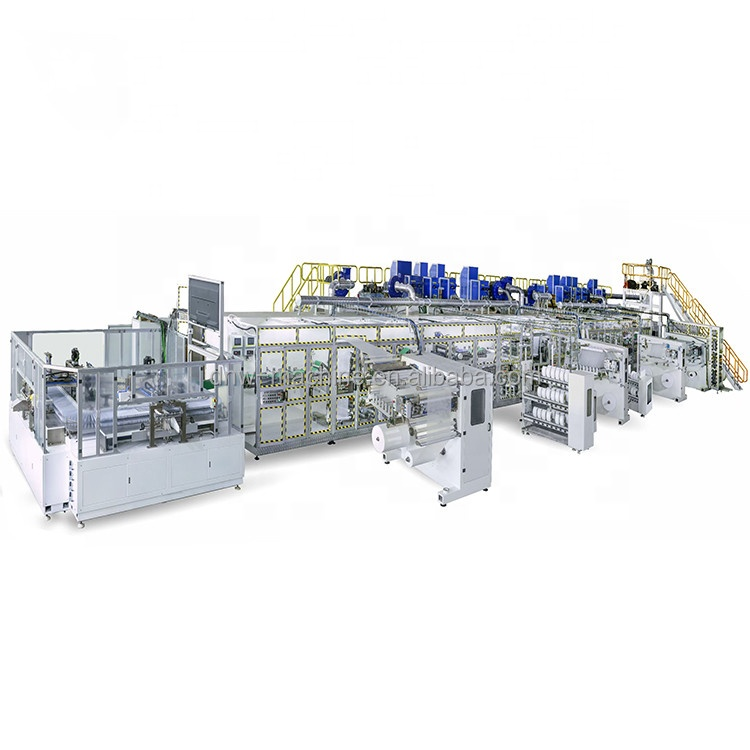

Semi-Auto Sanitary Napkin Production Line with PLC Control

Semi-Auto Sanitary Napkin Production Line with PLC Control

Key Specifications / Features

Model No.: HM-231018-SNM-13 Hits: 1

Explore our Semi-Auto Sanitary Napkin Production Line – your trusted source for quality and efficiency. With a pass rate exceeding 98% and a remarkable speed of 700 pieces per minute, PLC control system, and user-friendly HMI operation for streamlined production.

Request a quote

Detail Information


Semi-Auto Sanitary Napkin Production Line with PLC Control

Subject Parameter
Overall size(L*W*H) 30M*6M*3M(For reference only)
Machine size(L*W*H) 22m*2m*2.5m,based on the product provided by client
Design speed 700pcs/min
Stable speed 600pcs/min
Pass percentage 98%
Work efficiency 90%
Power source 380V,50HZ,(3phase,4lines+ground wire)
Machine capacity about 200KW
Air pressure 0.6-0.8Mpa
Machine weight  About 40T
Machine color Customized


Configuration:

Product Structure:
Topsheet, ADL (Blue core layer), Layer tissue, fluff pulp (mixed with SAP)/SAP paper, back sheet, wings/back release paper.

Product Size:
Daytime use: 240mm, Night use: 285mm (Customizable)

Control System:
Utilizes PLC programming control and HMI operation.

Tension System:
Tension control for carrier tissue, absorbent paper, topsheet NW, leg cuffs NW, ADL, PE film, back release paper, Wings release paper, and pouch film. A&B shafts are actively unwound by inverter motors.

Drive System:
Equipped with servo drive for conveyance, high-quality imported timing belts, and bearings.

Safety System:
Safety measures include safety guards installed at the operating side, an emergency stop switch, and a security identifier. The driven side features a safety pull wire.

Materials Correction System:
The machine offers an optional Germany BST automatic web guide system for materials correction.
