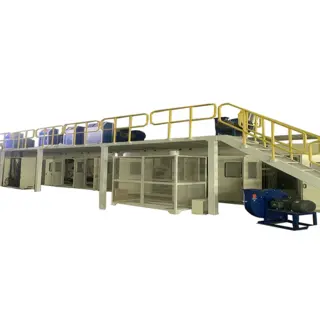

Semi-Servo Baby Diaper Production Line for Diaper Making
Key Specifications / Features
Model No.: HM-231011-BDM-03 Hits: 1
Discover our Baby Diaper Production Machine with a robust 3-shaft mechanical drive. It operates at a capacity of 280 KW and maintains a stable design speed of 500 pieces per minute. Equipped with safety devices and an emergency stop switch, it ensures secure and efficient operation.
Request a quoteTags
Detail Information
Advanced Full-Servo Baby Diaper Production Line
| Subject | Parameter |
| Overall size(L*W*H) | 24M*4M*3.6M(For reference only) |
| Machine size(L*W*H) | 22m*2.1m*3.3m,based on the product provided by client |
| Design speed | 500pcs/min |
| Stable speed | 400pcs/min |
| Pass percentage | 98% |
| Work efficiency | 85%-90% |
| Power source | 380V,50HZ,(3phase,4lines+ground wire) |
| Machine capacity | about 280KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 55T |
| Machine color | Customized |
Configuration:
Product Components:
Fluff Core with Up & Down Tissue (incorporating SAP), ADL Layer, Backsheet, Frontal Tape, Topsheet, Leg Cuff Nonwoven, Side Tapes, Waistband.
Product Sizes:
Small (S): 390 x 280 mm
Medium (M): 450 x 320 mm
Large (L): 500 x 320 mm
Extra Large (XL): 525 x 330 mm
Control System:
PLC control with a touchscreen interface
LED digital display for pattern-based production control
Tension System:
A&B shaft active unwinding powered by inverter motors for Tissue, ADL, Backsheet, Topsheet, and Cuff Nonwoven.
Drive System:
Three-shaft mechanical drive
Semi-servo and full-servo options available
Safety Features:
Safety devices and an emergency stop switch on the operating side
High-performance fan with sound insulation or a silencer
Packing Options:
Stacker available upon client's request
Material Alignment System:
Optional German BST automatic web guide system for precise material alignment.
Main Product Lines:
- Baby Diaper Production Line (Includes I & T shape diaper, Baby pants, Full Elastic waistband diaper)
- Adult Diaper Production Line (Includes Adult diaper, Adult pants)
- Sanitary Napkin & Panty Liner Production Line
- Menstruation Panty Production Line
- Under Pad Production Line
- Disposable Breast Pad Production Line
